12.9. Small Tiles

12.9.1. Overview

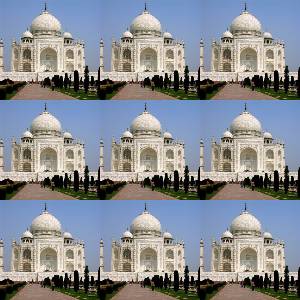

Figure 16.263. Example for the Small Tiles filter

Example for the Small Tiles filter

Original image

Example for the Small Tiles filter

This filter reduces the image (active layer or selection) and displays it in many copies inside the original image.

12.9.2. Activate the filter

You can find this filter through Filters ? Map ? Small Tiles.

12.9.3. Options

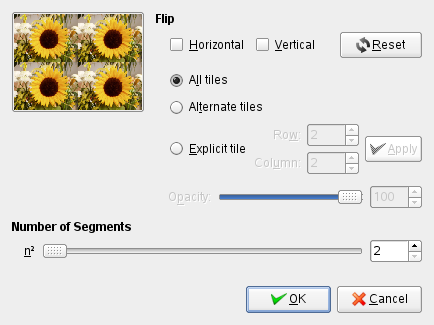

Figure 16.264. Small Tiles filter options

Small Tiles filter options

Number of Segments

n? means the image into n to the power of two tiles, where n is the number you set with the slider or its input box. n = 3 will make nine tiles in the image.

Opacity

With this slider and its input box, you can set the opacity of the resulting image. This option is valid only if your image has an Alpha channel.

Flip

You can flip tiles according to the Horizontal or/and Vertical axis by checking the corresponding option(s).

You can also decide which tiles will be flipped:

  • All tiles: no comment.

  • Alternate tiles: only odd tiles will be flipped.

  • Explicit tile: you can define, a particular tile by using both Line and Column input boxes. This tile will be marked with a box in Preview.
