Every layer has a name. This is assigned automatically when the layer is created, but you can change it. You can change the name of a layer either by double-clicking on it in the Layers dialog, or by right-clicking there and then selecting the top entry in the menu that appears, Edit Layer Attributes.

An alpha channel encodes information about how transparent a layer is at each pixel. It is visible in the Channel Dialog: white is complete opacity, black is complete transparency and grey levels are partial transparencies.

The background layer is particular. If you have just created a new image, it has still only one layer which is a background layer. If the image has been created with an opaque Fill type, this one layer has no Alpha channel. If you add a new layer, even with an opaque Fill type, an Alpha channel is automatically created, which applies to all layers apart from the background layer. To get a background layer with transparency, either you create your new image with a transparent Fill type, or you use the Add an Alpha Channel.

Every layer other than the bottom layer of an image has automatically an Alpha channel, but you can't see a grayscale representation of the alpha values. See Alpha in Glossary for more information.

Example for Alpha channel.

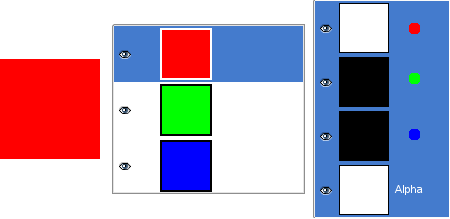

Figure 8.1. Alpha channel example: Basic image

This image has three layers painted with pure 100% opaque Red, Green, and Blue. In the Channel Dialog, you can see that an alpha Channel has been added. It is white because the image is not transparent since there is at least one 100% opaque layer. The current layer is the red one : since it is painted with pure red, there is no green and no blue and the corresponding channels are black.

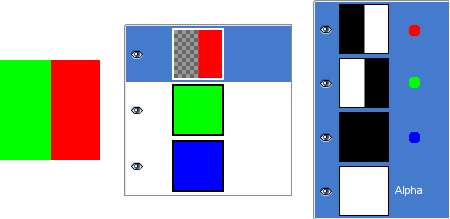

Figure 8.2. Alpha channel example: One transparent layer

The left part of the first layer has been made transparent (Rectangular selection, Edit/Clear). The second layer, green, is visible. The Alpha channel is still white, since there is an opaque layer in this part of the image.

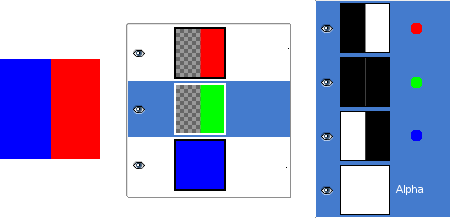

Figure 8.3. Alpha channel example: Two transparent layers

The left part of the second layer has been made transparent. The third layer, blue, is visible through the first and second layers. The Alpha channel is still white, since there is an opaque layer in this part of the image.

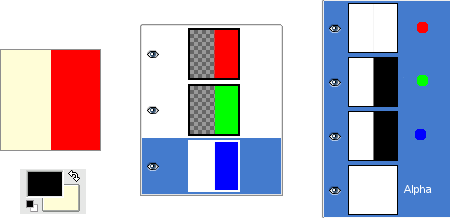

Figure 8.4. Alpha channel example: Three transparent layers

The left part of the third layer has been made transparent. The Alpha channel is still white and the left part of the layer is white, opaque! The background layer has no Alpha channel. In this case, the Clear command works like the Eraser and uses the Background color of Toolbox.

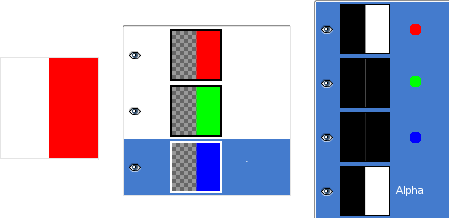

Figure 8.5.  Alpha channel example: Alpha channel added to the Background

We used the Layer ? Transparency ? Add Alpha Channel command, on the Background layer. Now, the left part of the image is fully transparent and has the color of the page the image is lying on. The left part of the Alpha Channel thumbnail is black (transparent) in the Channel Dialog.

The layer type is determined by the image type (see previous section) and the presence or absence of an alpha channel. These are the possible layer types:

The main reason this matters is that most filters (in the Filters menu) only accept a subset of layer types, and appear grayed out in the menu if the active layer does not have an acceptable type. Often you can rectify this either by changing the mode of the image or by adding or removing an alpha channel.

It is possible to temporarily remove a layer from an image, without destroying it, by clicking on the symbol in the Layers dialog. This is called “toggling the visibility” of the layer. Most operations on an image treat toggled-off layers as if they did not exist. When you work with images containing many layers, with varying opacity, you often can get a better picture of the contents of the layer you want to work on by hiding some of the other layers.

	Tip
	If you Shift-click on the eye symbol, this will cause all layers except the one you click on to be hidden.

If you click between the eye icon and the layer thumbnail, you get a chain icon, which enables you to group layers for operations on multiple layers (for example with the Move tool or a transform tool).

Figure 8.6. Layer Dialog

Red: Linkage to others layers. Green: Visibility.

In GIMP, the boundaries of a layer do not necessarily match the boundaries of the image that contains it. When you create text, for example, each text item goes into its own separate layer, and the layer is precisely sized to contain the text and nothing more. Also, when you create a new layer using cut-and-paste, the new layer is sized just large enough to contain the pasted item. In the image window, the boundaries of the currently active layer are shown outlined with a black-and-yellow dashed line.

The main reason why this matters is that you cannot do anything to a layer outside of its boundaries: you can't act on what doesn't exist. If this causes you problems, you can alter the dimensions of the layer using any of several commands that you can find near the bottom of the Layer menu.

	Note
	The amount of memory that a layer consumes is determined by its dimensions, not its contents. So, if you are working with large images or images that contain many layers, it might pay off to trim layers to the minimum possible size.

The opacity of a layer determines the extent to which it lets colors from layers beneath it in the stack show through. Opacity ranges from 0 to 100, with 0 meaning complete transparency, and 100 meaning complete opacity.

The Mode of a layer determines how colors from the layer are combined with colors from the underlying layers to produce a visible result. This is a sufficiently complex, and sufficiently important, concept to deserve a section of its own, which follows. See Section 2, “Layer Modes”.

In addition to the alpha channel, there is another way to control the transparency of a layer: by adding a layer mask, which is an extra grayscale drawable associated with the layer. A layer does not have a layer mask by default: it must be added specifically. Layer masks, and how to work with them, are described much more extensively in the Layer Mask section.

In the upper left corner of the Layers dialog appears a small checkbox that controls the “Lock” setting for the transparency of the layer (see the figure below). If this is checked, then the alpha channel for the layer is locked, and no manipulation has any effect on it. In particular, nothing that you do to a transparent part of the layer will have any effect.

Figure 8.7. Lock Alpha channel
