13.4. Solid Noise

13.4.1. Overview

Figure 16.279. Example of turbulent solid noise

Example of turbulent solid noise

Filter Solid noise applied


Solid Noise is a great texture maker. Note that this noise is always gray, even if you applied it to a very colorful image (it doesn't matter what the original image looks like -- this filter completely overwrites any existing background in the layer it is applied to). This is also a good tool to create displacement maps for the Warp plug-in or for the Bump Map plug-in. With the "turbulence" setting active, the results look quite a bit like real clouds.

13.4.2. Activating the filter

This filter is found in the image window menu under Filters ? Render ? Clouds ? Solid noise.

13.4.3. Options

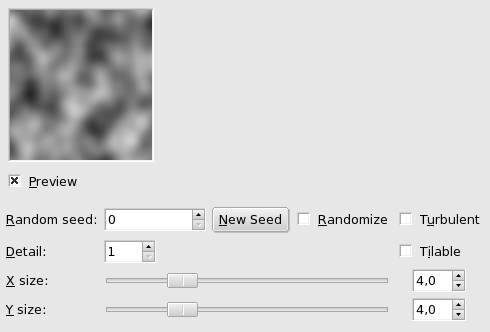

Figure 16.280. Solid Noise filter options

Solid Noise filter options

Random Seed

Random Seed controls random behaviour of the filter. If the same random seed in the same situation is used, the filter produces exactly the same results. A different random seed produces different results. Random seed can be entered manually or generated randomly by pressing New Seed button.

When the Randomize option is checked, random seed cannot be entered manually, but is randomly generated each time the filter is run. If it is not checked, the filter remembers the last random seed used.

Turbulent

If you check this, you'll get very interesting effects, often something that looks much like oil on water, or clouds of smoke, or living tissue, or a Rorschach blot.

Detail

This controls the amount of detail in the noise texture. Higher values give a higher level of detail, and the noise seems to be made of spray or small particles, which makes it feel hard. A low value makes it more soft and cloudy.

Tileable

If you check Tileable, you'll get a noise which can be used as tiles. For example, you can use it as a background in an HTML page, and the tile edges will be joined seamlessly.

X and Y Size

These control the size and proportion of the noise shapes in X (horizontal) and Y (vertical) directions (range 0.1 to 16.0).
